Load Test 2: Timed Testing

This load tests writes to the main database while reading from the replica.

This load test introduces timers for writing to the main db and reading from the replica db.

I chose 4 writes/second and 20 reads/second.

This causes the replica not to be delayed in any way.

Apache JMeter Script

<?xml version="1.0" encoding="UTF-8"?>
<jmeterTestPlan version="1.2" properties="5.0" jmeter="5.6.3">
  <hashTree>
    <TestPlan guiclass="TestPlanGui" testclass="TestPlan" testname="PostgreSQL Test Plan">
      <boolProp name="TestPlan.tearDown_on_shutdown">true</boolProp>
      <elementProp name="TestPlan.user_defined_variables" elementType="Arguments" guiclass="ArgumentsPanel" testclass="Arguments" testname="User Defined Variables">
        <collectionProp name="Arguments.arguments"/>
      </elementProp>
      <stringProp name="TestPlan.user_define_classpath">C:\Users\sascha\Code\apache-jmeter-5.6.3\lib\postgresql-42.7.5.jar</stringProp>
      <boolProp name="TestPlan.functional_mode">false</boolProp>
      <boolProp name="TestPlan.serialize_threadgroups">false</boolProp>
    </TestPlan>
    <hashTree>
      <Arguments guiclass="ArgumentsPanel" testclass="Arguments" testname="User Defined Variables">
        <collectionProp name="Arguments.arguments">
          <elementProp name="mainuser" elementType="Argument">
            <stringProp name="Argument.name">mainuser</stringProp>
            <stringProp name="Argument.value">${__GetSecret(mainuser)}</stringProp>
            <stringProp name="Argument.metadata">=</stringProp>
          </elementProp>
          <elementProp name="mainpassword" elementType="Argument">
            <stringProp name="Argument.name">mainpassword</stringProp>
            <stringProp name="Argument.value">${__GetSecret(mainpassword)}</stringProp>
            <stringProp name="Argument.metadata">=</stringProp>
          </elementProp>
          <elementProp name="replicauser" elementType="Argument">
            <stringProp name="Argument.name">replicauser</stringProp>
            <stringProp name="Argument.value">${__GetSecret(replicauser)}</stringProp>
            <stringProp name="Argument.metadata">=</stringProp>
          </elementProp>
          <elementProp name="replicapassword" elementType="Argument">
            <stringProp name="Argument.name">replicapassword</stringProp>
            <stringProp name="Argument.value">${__GetSecret(replicapassword)}</stringProp>
            <stringProp name="Argument.metadata">=</stringProp>
          </elementProp>
          <elementProp name="main_threads" elementType="Argument">
            <stringProp name="Argument.name">main_threads</stringProp>
            <stringProp name="Argument.value">${__BeanShell(System.getenv(&quot;main_threads&quot;))}</stringProp>
            <stringProp name="Argument.metadata">=</stringProp>
          </elementProp>
          <elementProp name="main_loops" elementType="Argument">
            <stringProp name="Argument.name">main_loops</stringProp>
            <stringProp name="Argument.value">${__BeanShell(System.getenv(&quot;main_loops&quot;))}</stringProp>
            <stringProp name="Argument.metadata">=</stringProp>
          </elementProp>
          <elementProp name="main_database" elementType="Argument">
            <stringProp name="Argument.name">main_database</stringProp>
            <stringProp name="Argument.value">${__BeanShell(System.getenv(&quot;main_database&quot;))}</stringProp>
            <stringProp name="Argument.metadata">=</stringProp>
          </elementProp>
          <elementProp name="replica_threads" elementType="Argument">
            <stringProp name="Argument.name">replica_threads</stringProp>
            <stringProp name="Argument.value">${__BeanShell(System.getenv(&quot;replica_threads&quot;))}</stringProp>
            <stringProp name="Argument.metadata">=</stringProp>
          </elementProp>
          <elementProp name="replica_loops" elementType="Argument">
            <stringProp name="Argument.name">replica_loops</stringProp>
            <stringProp name="Argument.value">${__BeanShell(System.getenv(&quot;replica_loops&quot;))}</stringProp>
            <stringProp name="Argument.metadata">=</stringProp>
          </elementProp>
          <elementProp name="replica_database" elementType="Argument">
            <stringProp name="Argument.name">replica_database</stringProp>
            <stringProp name="Argument.value">${__BeanShell(System.getenv(&quot;replica_database&quot;))}</stringProp>
            <stringProp name="Argument.metadata">=</stringProp>
          </elementProp>
        </collectionProp>
      </Arguments>
      <hashTree/>
      <JDBCDataSource guiclass="TestBeanGUI" testclass="JDBCDataSource" testname="PostgreSQL JDBC Connection Main" enabled="true">
        <boolProp name="autocommit">true</boolProp>
        <stringProp name="checkQuery">select 1</stringProp>
        <stringProp name="connectionAge">5000</stringProp>
        <stringProp name="connectionProperties"></stringProp>
        <stringProp name="dataSource">primary_db</stringProp>
        <stringProp name="dbUrl">${main_database}</stringProp>
        <stringProp name="driver">org.postgresql.Driver</stringProp>
        <stringProp name="initQuery"></stringProp>
        <boolProp name="keepAlive">true</boolProp>
        <stringProp name="password">${mainpassword}</stringProp>
        <stringProp name="poolMax">100</stringProp>
        <boolProp name="preinit">false</boolProp>
        <stringProp name="timeout">10000</stringProp>
        <stringProp name="transactionIsolation">DEFAULT</stringProp>
        <stringProp name="trimInterval">60000</stringProp>
        <stringProp name="username">${mainuser}</stringProp>
      </JDBCDataSource>
      <hashTree/>
      <JDBCDataSource guiclass="TestBeanGUI" testclass="JDBCDataSource" testname="JDBC Connection Configuration Replica" enabled="true">
        <stringProp name="dataSource">replica_db</stringProp>
        <stringProp name="poolMax">100</stringProp>
        <stringProp name="timeout">10000</stringProp>
        <stringProp name="trimInterval">60000</stringProp>
        <boolProp name="autocommit">true</boolProp>
        <stringProp name="transactionIsolation">DEFAULT</stringProp>
        <boolProp name="preinit">false</boolProp>
        <stringProp name="initQuery"></stringProp>
        <boolProp name="keepAlive">true</boolProp>
        <stringProp name="connectionAge">5000</stringProp>
        <stringProp name="checkQuery">select 1</stringProp>
        <stringProp name="dbUrl">${replica_database}</stringProp>
        <stringProp name="driver">org.postgresql.Driver</stringProp>
        <stringProp name="username">${replicauser}</stringProp>
        <stringProp name="password">${replicapassword}</stringProp>
        <stringProp name="connectionProperties"></stringProp>
      </JDBCDataSource>
      <hashTree/>
      <ThreadGroup guiclass="ThreadGroupGui" testclass="ThreadGroup" testname="Thread Group Write Main Db">
        <stringProp name="ThreadGroup.num_threads">${main_threads}</stringProp>
        <intProp name="ThreadGroup.ramp_time">10</intProp>
        <boolProp name="ThreadGroup.same_user_on_next_iteration">true</boolProp>
        <stringProp name="ThreadGroup.on_sample_error">continue</stringProp>
        <elementProp name="ThreadGroup.main_controller" elementType="LoopController" guiclass="LoopControlPanel" testclass="LoopController" testname="Loop Controller">
          <stringProp name="LoopController.loops">${main_loops}</stringProp>
          <boolProp name="LoopController.continue_forever">false</boolProp>
        </elementProp>
      </ThreadGroup>
      <hashTree>
        <JDBCSampler guiclass="TestBeanGUI" testclass="JDBCSampler" testname="WRITE to Main Db">
          <stringProp name="dataSource">primary_db</stringProp>
          <stringProp name="query">UPDATE public.products
SET price = ${__Random(0000,9999)}
WHERE name = &apos;Product A&apos;;

UPDATE public.products
SET price = ${__Random(0000,9999)}
WHERE name = &apos;Product B&apos;;

UPDATE public.products
SET price = ${__Random(0000,9999)}
WHERE name = &apos;Product C&apos;;

UPDATE public.products
SET price = ${__Random(0000,9999)}
WHERE name = &apos;Product D&apos;;

UPDATE public.products
SET price = ${__Random(0000,9999)}
WHERE name = &apos;Product E&apos;;
</stringProp>
          <stringProp name="queryArguments"></stringProp>
          <stringProp name="queryArgumentsTypes"></stringProp>
          <stringProp name="queryTimeout"></stringProp>
          <stringProp name="queryType">Update Statement</stringProp>
          <stringProp name="resultSetHandler">Store as String</stringProp>
          <stringProp name="resultSetMaxRows"></stringProp>
          <stringProp name="resultVariable"></stringProp>
          <stringProp name="variableNames"></stringProp>
        </JDBCSampler>
        <hashTree/>
        <ConstantThroughputTimer guiclass="TestBeanGUI" testclass="ConstantThroughputTimer" testname="Constant Throughput Timer">
          <intProp name="calcMode">2</intProp>
          <doubleProp>
            <name>throughput</name>
            <value>60.0</value>
            <savedValue>0.0</savedValue>
          </doubleProp>
        </ConstantThroughputTimer>
        <hashTree/>
      </hashTree>
      <ThreadGroup guiclass="ThreadGroupGui" testclass="ThreadGroup" testname="Thread Group Read ReplicaDb">
        <stringProp name="ThreadGroup.num_threads">${replica_threads}</stringProp>
        <intProp name="ThreadGroup.ramp_time">10</intProp>
        <boolProp name="ThreadGroup.same_user_on_next_iteration">true</boolProp>
        <stringProp name="ThreadGroup.on_sample_error">continue</stringProp>
        <elementProp name="ThreadGroup.main_controller" elementType="LoopController" guiclass="LoopControlPanel" testclass="LoopController" testname="Loop Controller">
          <stringProp name="LoopController.loops">${replica_loops}</stringProp>
          <boolProp name="LoopController.continue_forever">false</boolProp>
        </elementProp>
      </ThreadGroup>
      <hashTree>
        <JDBCSampler guiclass="TestBeanGUI" testclass="JDBCSampler" testname="READ from Replica Db">
          <stringProp name="dataSource">replica_db</stringProp>
          <stringProp name="queryType">Select Statement</stringProp>
          <stringProp name="query">SELECT *
FROM public.products
ORDER by price DESC
</stringProp>
          <stringProp name="queryArguments"></stringProp>
          <stringProp name="queryArgumentsTypes"></stringProp>
          <stringProp name="variableNames"></stringProp>
          <stringProp name="resultVariable"></stringProp>
          <stringProp name="queryTimeout"></stringProp>
          <stringProp name="resultSetMaxRows"></stringProp>
          <stringProp name="resultSetHandler">Store as String</stringProp>
        </JDBCSampler>
        <hashTree/>
        <ConstantThroughputTimer guiclass="TestBeanGUI" testclass="ConstantThroughputTimer" testname="Constant Throughput Timer">
          <doubleProp>
            <name>throughput</name>
            <value>240.0</value>
            <savedValue>0.0</savedValue>
          </doubleProp>
          <intProp name="calcMode">2</intProp>
        </ConstantThroughputTimer>
        <hashTree/>
      </hashTree>
    </hashTree>
  </hashTree>
</jmeterTestPlan>

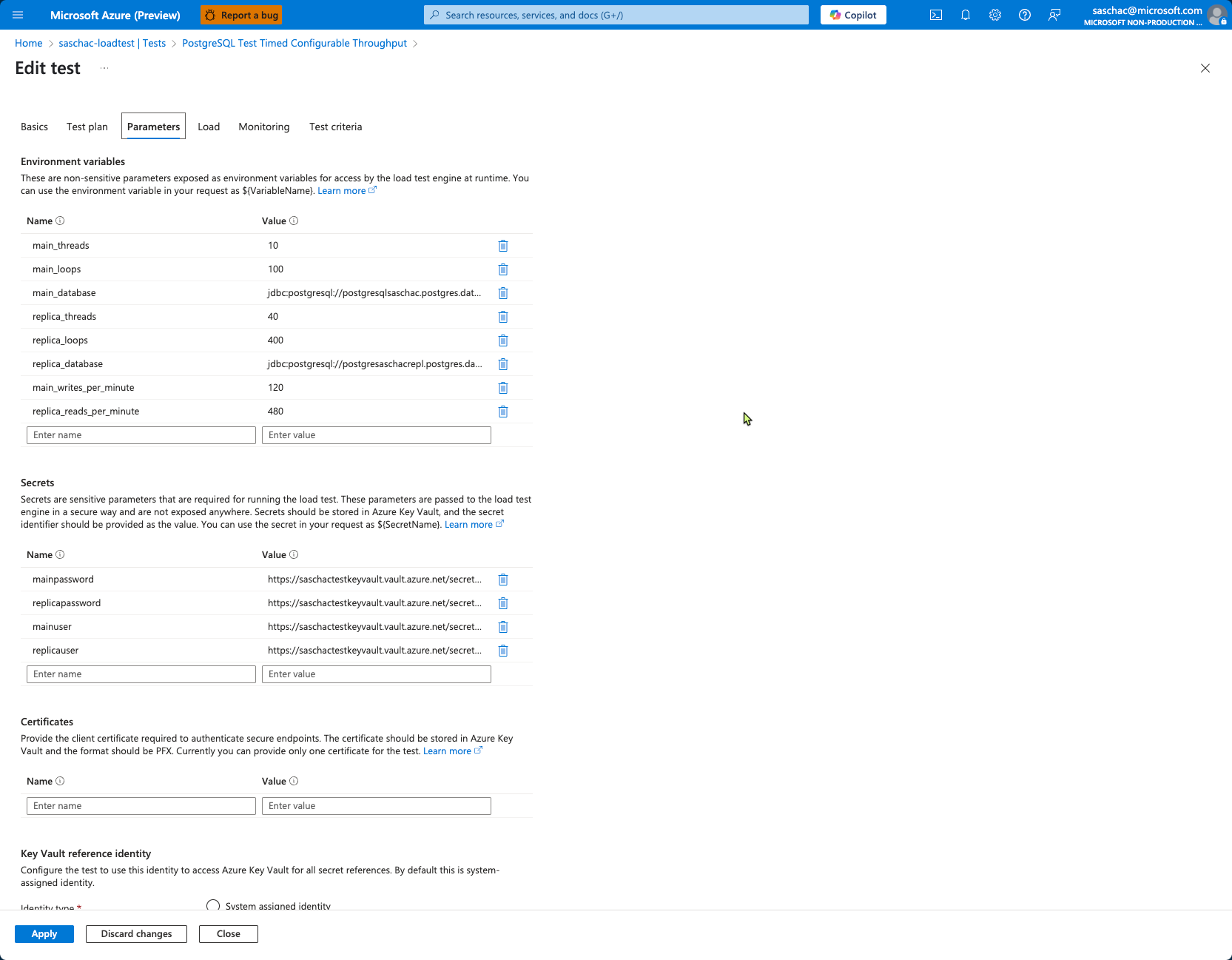

Azure Load Test Parameters

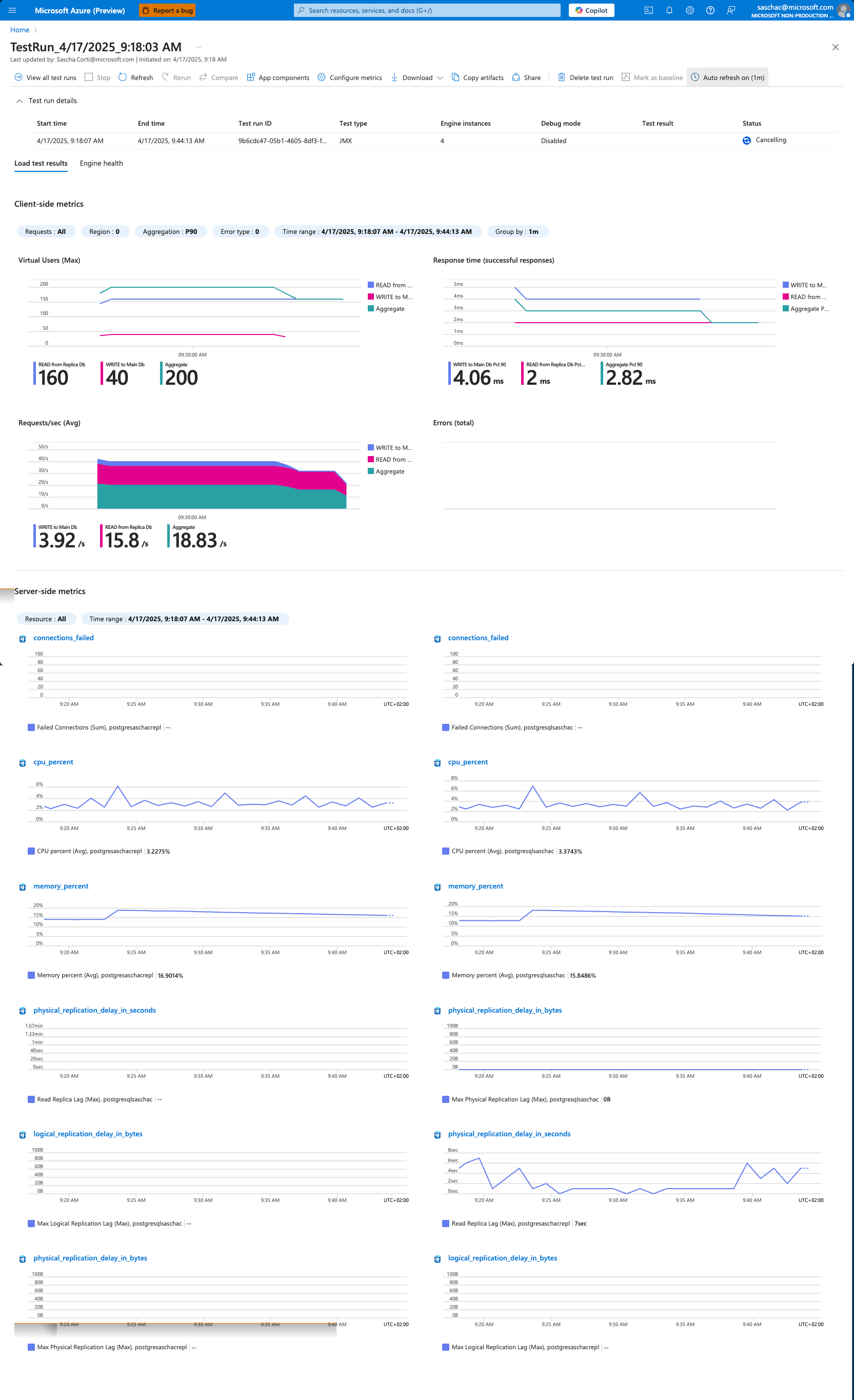

Azure Load Test Result

In App result:
